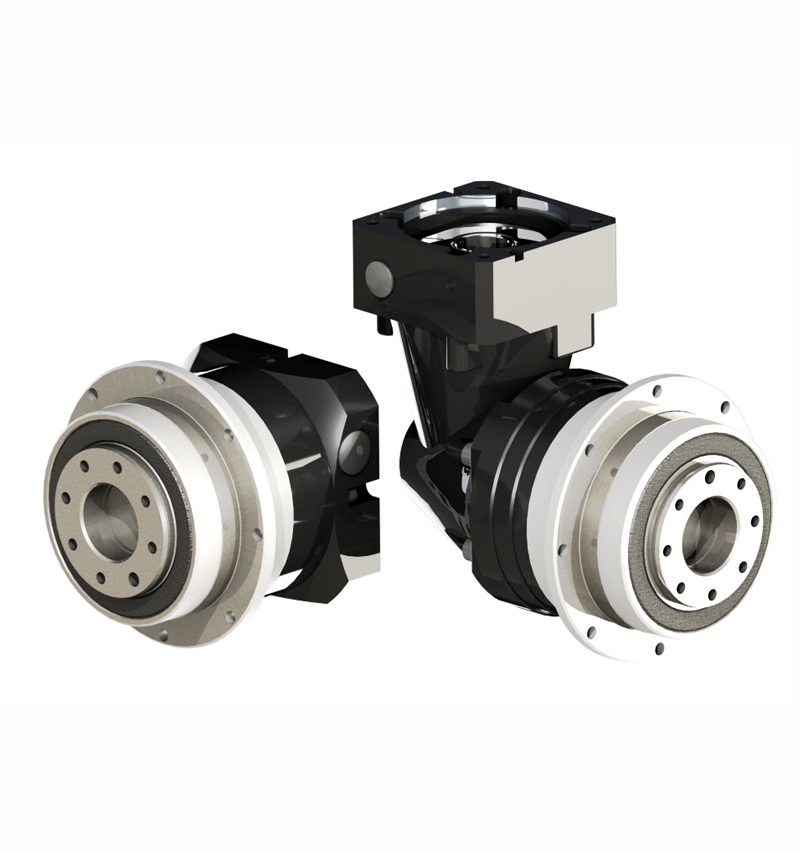

AD/ADR Series

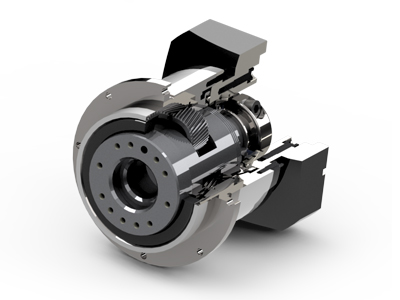

AD series and ADR series (angle version) built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with Roller bearings supported on each end taken large axial load capacity. They are best choice for the precision positioning applications as well as smooth running required.

Features

* Smooth running and low vibration
* Roller bearings for big Axial load
* High stiffness gears for heavy load
* Modularized designed for any servomotors
* Low backlash
* Any mount positions
* Grease lubrication lifetime free-maintenance
* Large radial and axial load capacity
Gearbox characteristics

AD Series Angle Planetary gearbox
    AD47 AD64 AD90 AD110 AD140 AD200 AD255 Stage
Ratios   3,4, 5,6,7,8,10 1
12,15,15,18,20,24,25,28,30,32,35,40,48,50,60,64,70,80 2
60,64,80,100,125,160,200,256,320 3
Efficiency at full load % 92%-97%
Operating temperature   -25/90
Protection class   IP65
Backlash arcmin <3 - <9 <5 - <11
Torsional stiffness Nm/arcmin 7 13 31 82 151 440 1006
Gearbox weight Kg 0.6-1.5 1.3-3.2 3.9-5.8 7.8-11 14.5-19 31-50 85-110
Running noise dB <58 <60 <60 <63 <65 <67 <70



ADR Series Angle Planetary gearbox
    ADR47 ADR64 ADR90 ADR110 ADR140 ADR200 ADR255 Stage
Ratios   3,4, 5,6,7,8,10 1
12,15,15,18,20,24,25,28,30,32,35,40,48,50,60,64,70,80 2
60,64,80,100,125,160,200,256,320 3
Efficiency at full load % 90%-95%
Operating temperature   -25/90
Protection class   IP65
Backlash arcmin <7 - <15 <9 - <16
Torsional stiffness Nm/arcmin 7 13 31 82 151 440 1006
Gearbox weight Kg 0.9-1.8 1.5-3.8 4.2-6.5 8.5-13 15.5-25 35-65 90-130
Running noise dB <63 <65 <68 <70 <70 <72 <78

Output shaft loads

    AD47/ADR47 AD64/ADR64 AD90/ADR90 AD110/ADR110 AD140/ADR140 AD200/ADR200 AD255/ADR255
Maximum Radial Force Fr 20.000 h (N) 800 3150 4500 7800 13700 26600 47800
Maximum Axial Force Fr 20.000 h (N) 500 2400 3500 3566 8800 18000 39000

Output torques

    AD47/ADR47 AD64/ADR64 AD90/ADR90 AD110/ADR110 AD140/ADR140 AD200/ADR200 AD255/ADR255
Nominal output torque N.m 14-23 42-65 105-165 255-345 455-700 910-1568 1500-2567
Maximum accele. Torque 1.5*Nominal output Torque
Emergency stop torque 3*Nominal Torque

Input speeds

    AD47/ADR47 AD64/ADR64 AD90/ADR90 AD110/ADR110 AD140/ADR140 AD200/ADR200 AD255/ADR255
Nominal input speed rpm 4000 3000 3000 3000 2000 1500 1000
Maximum input speed 8000 6000 6000 6000 4000 3000 2000

Dimensions

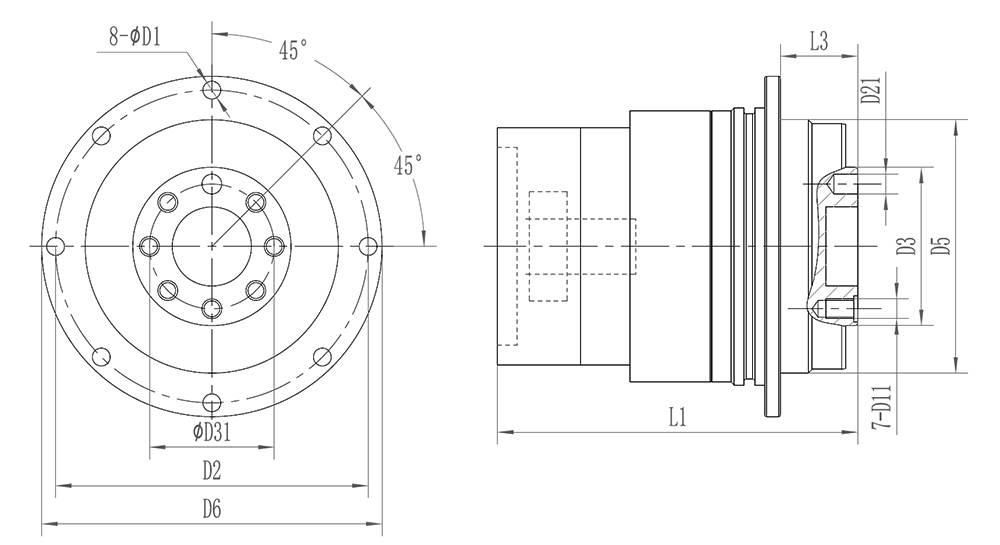

AD

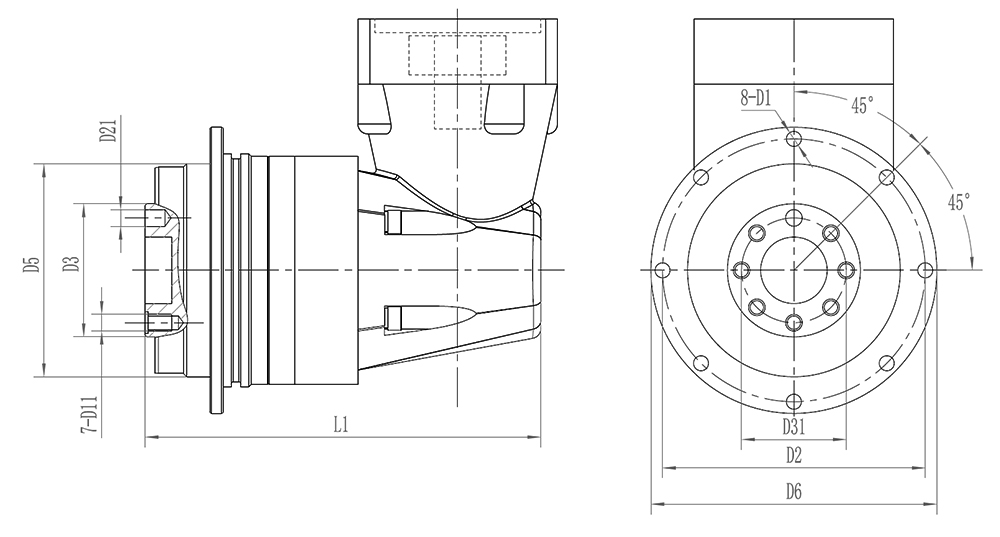

ADR



  unit=mm AD47/ADR47 AD64/ADR64 AD90/ADR90 AD110/ADR110 AD140/ADR140 AD200/ADR200 AD255/ADR255
Output shaft diameter D3 28 39 63 80 110 160 180
Pilot spigot diameter D5 47 64 90 110 140 200 255
Out shaft length L1 19.5 19.5 30 29 38 50 66
Output flange size D6 Ø3 Ø5 Ø6 Ø6 Ø8 Ø10 Ø17.3
Mounting holes on flange D1 Ø3.4 Ø4.5 Ø5.5 Ø5.5 Ø8 Ø10 Ø13.5
Bolt circle D2 67 79 109 135 168 233 280
Assemble hole bolt circle D31 20 31.5 50 63 80 125 140
Overall length L1 Variable according to motor

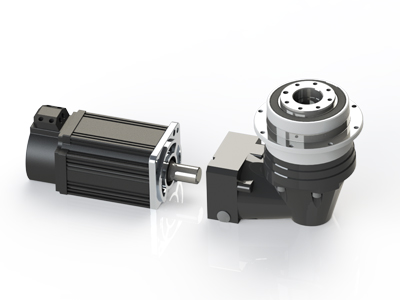

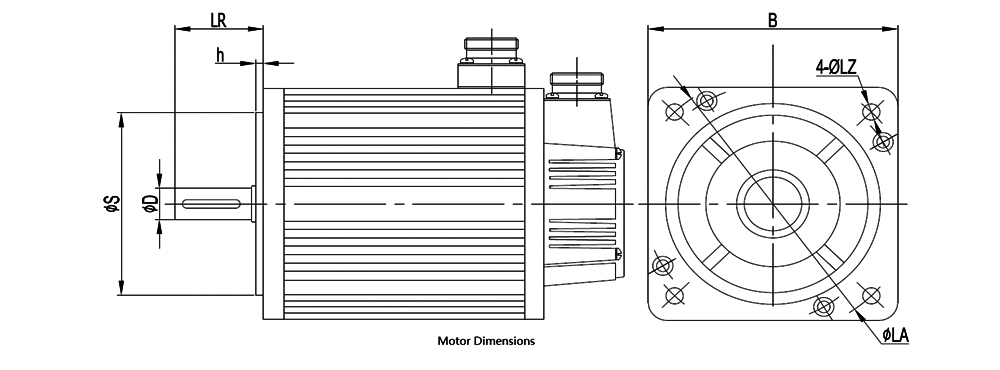

Find your drawing according to your motor dimensions





Send us your motor dimensions.Ask us for the drawing and 3D model.Mail to:drawings@newstartmotion.com
