AB/ABR Helical Servo Gearbox

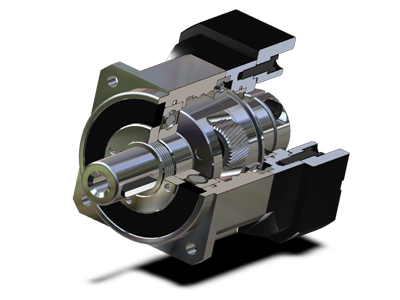

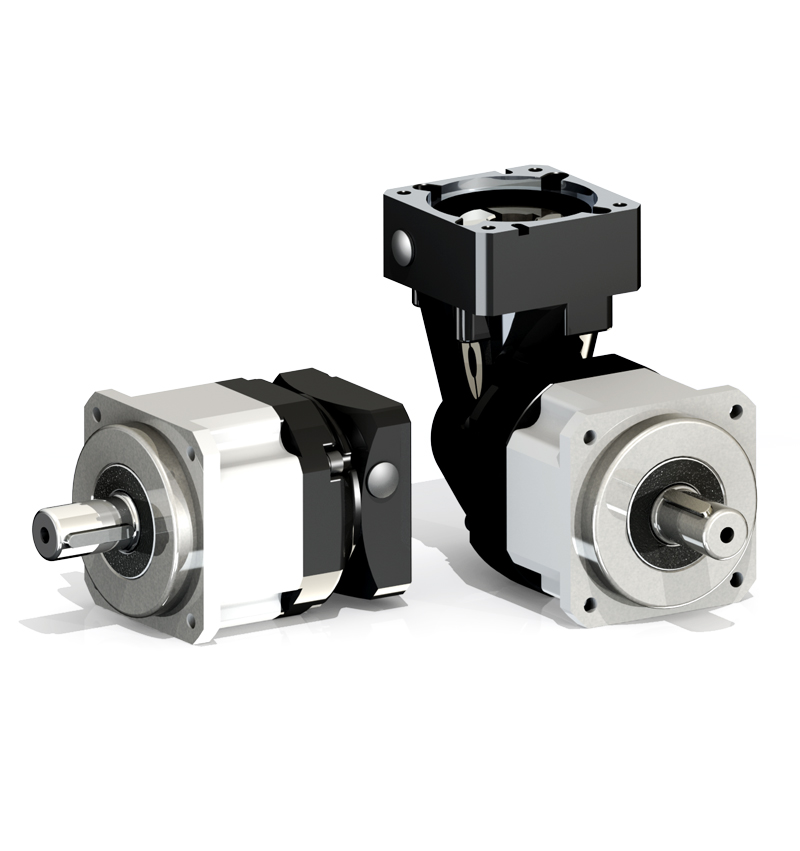

AB series and ABR series (angle version) built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with bearings supported on each end taken large radial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
Get the full datasheet here

Features

* Smooth running and low vibration
* High stiffness gears for heavy load
* Modularized designed for any servomotors
* Low backlash
* Any mount positions
* Grease lubrication lifetime free-maintenance
* Large radial and axial load capacity
Gearbox characteristics

AB Series inline planetary gearbox
    AB42 AB60 AB90 AB115 AB142 AB180 AB220 Stage
Ratios   3,4, 5,6,7,8,10 1
12,15,15,18,20,24,25,28,30,32,35,40,48,50,60,64,70,80 2
60,64,80,100,125,160,200,256,320 3
Efficiency at full load % 92%-97%
Operating temperature   '-25/90
Protection class   IP65
Backlash arcmin <3 - <9 <5 - <11
Torsional stiffness Nm/arcmin 3 7 14 25 50 145 225
Gearbox weight Kg 0.6-1.1 1.3-2.9 3.8-5.5 7.8-10 14.5-17 29-35 48-65
Running noise dB <58 <60 <60 <63 <65 <67 <70

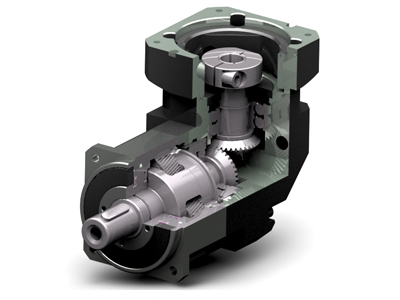

ABR Series Angle Planetary gearbox
    ABR42 ABR60 ABR90 ABR115 ABR142 ABR180 ABR220 Stage
Ratios   3,4, 5,6,7,8,10 1
12,15,15,18,20,24,25,28,30,32,35,40,48,50,60,64,70,80 2
60,64,80,100,125,160,200,256,320 3
Efficiency at full load % 90%-95%
Operating temperature   '-25/90
Protection class   IP65
Backlash arcmin <7 - <15 <12 - <16
Torsional stiffness Nm/arcmin 3 7 14 25 50 145 225
Gearbox weight Kg 0.9-1.5 1.5-3.2 5.4-6.5 10-12 19.5-25 45-65 80-110
Running noise dB <63 <65 <68 <70 <70 <72 <78

Output shaft loads

    AB42/ABR42 AB60/ABR60 AB90/ABR90 AB115/ABR115 AB142/ABR142 AB180/ABR180 AB220/ABR220
Maximum Radial Force Fr 20.000 h (N) 770 1500 3200 6700 9600 14000 16000
Maximum Axial Force Fr 20.000 h (N) 380 760 1600 3300 4800 7000 8000

Output torques

    AB42/ABR42 AB60/ABR60 AB90/ABR90 AB115/ABR115 AB142/ABR142 AB180/ABR180 AB220/ABR220
Nominal output torque N.m 14-23 42-65 105-165 255-345 455-700 910-1568 1500-2567
Maximum accele. Torque 1.8*Nominal output Torque
Emergency stop torque 3*Nominal Torque

Input speeds

    AB42/ABR42 AB60/ABR60 AB90/ABR90 AB115/ABR115 AB142/ABR142 AB180/ABR180 AB220/ABR220
Nominal input speed rpm 4000 3000 3000 3000 2000 1500 1000
Maximum input speed 8000 6000 6000 6000 4000 3000 2000

Dimensions

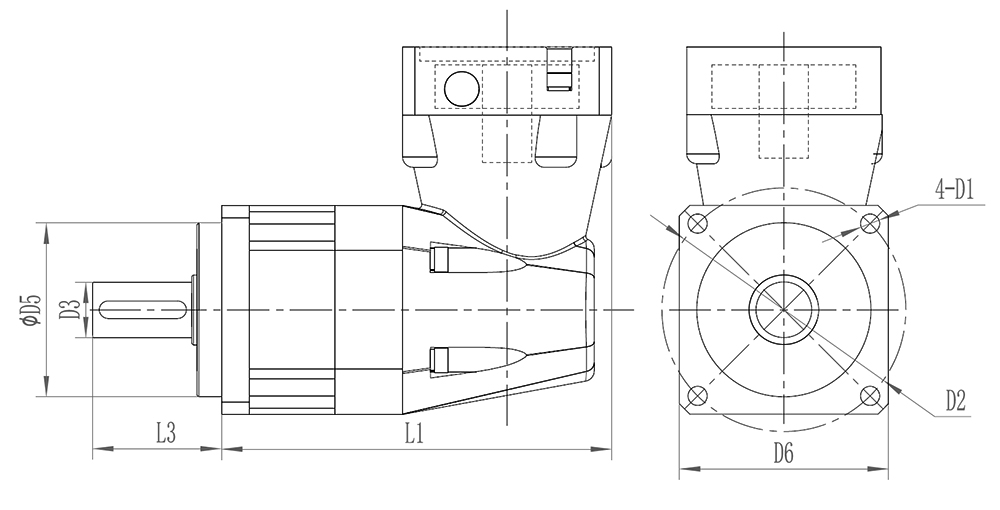

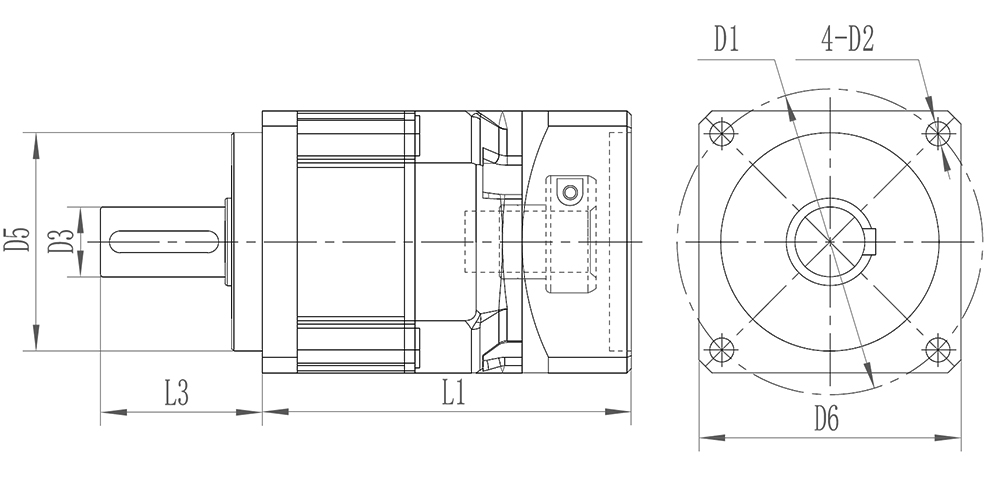

AB
ABR



  unit=mm AB42/ABR42 AB60/ABR60 AB90/ABR90 AB115/ABR115 AB142/ABR142 AB180/ABR180 AB220/ABR220
Output shaft diameter D3 13 16 22 32 40 50 75
Pilot spigot diameter D5 35 50 80 110 130 160 180
Out shaft length L1 26 37 48 65 97 105 138
Output flange size D6 □42 □42 □90 □115 □142 □180 □220
Mounting holes on flange D1 3.5 5.5 6.5 9 11 13 17
Bolt circle D2 50 70 100 130 165 215 250
Overall length Variable according to motor



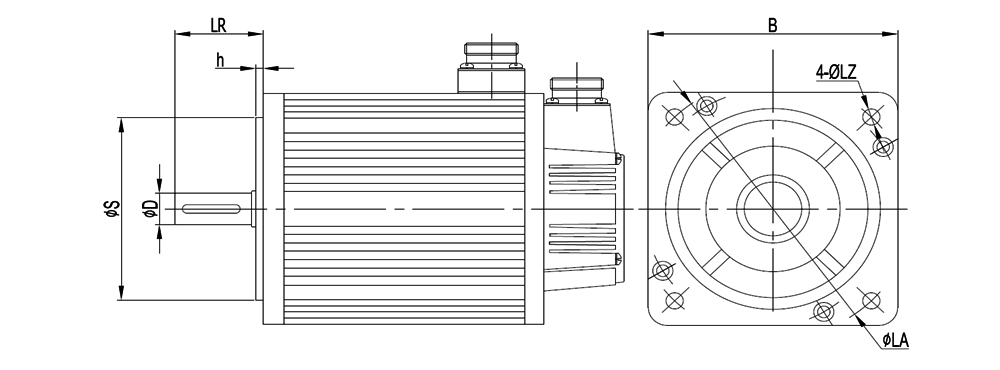

Find your drawing according to your motor dimensions



Send us your motor dimensions.Ask us for the drawing and 3D model.Mail to:drawings@newstartmotion.com
